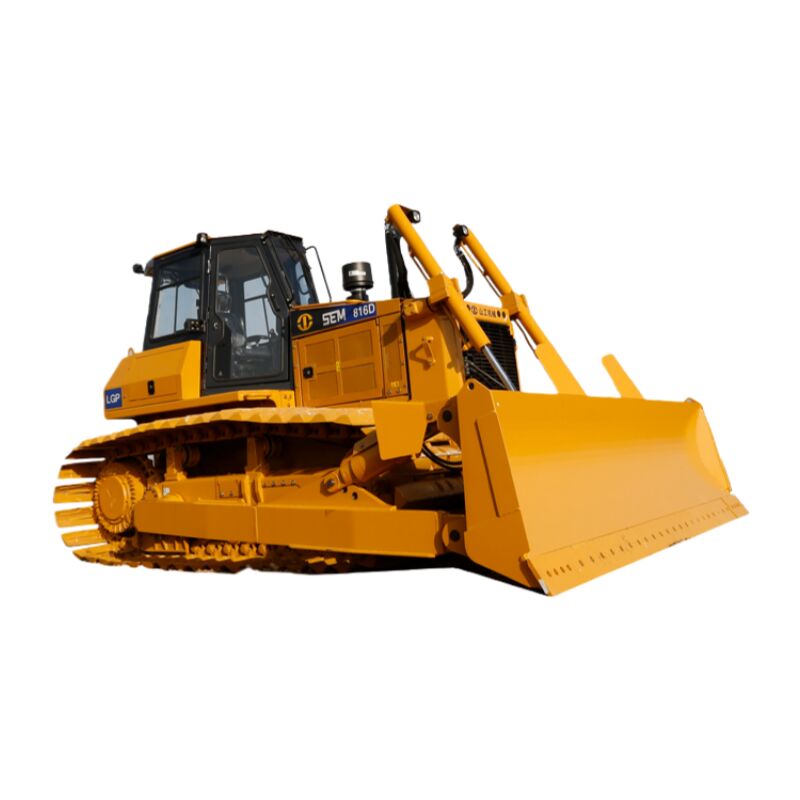

SEM816D 822D 832F Hydraulic Crawler Bulldozer Large Dozers

Name: SEM816D 822D 832F Hydraulic Crawler Bulldozer Large Dozers
Brand: Shandong Heavy Industry Machinery Co.,Ltd.
SKU: 822D
Availability: InStock

Luogo di origine	Cina
Marca	SEM
Certificazione	CE
Numero di modello	822D

Dettagli del prodotto

Peso operativo (con tre Shank Ripper):

26.520 kg

Potenza nominale:

175KW

Capacità facente un pisolino:

6.4cbm

Gradeabilità:

30 °

Autorizzazione minima del suolo:

400 mm

Larghezza delle scarpe da pista:

560 mm

Descrizione di prodotto

SEM816D 822D 832F Hydraulic Crawler Bulldozer Large Dozers

Product Description

Efficient: The electronically controlled hydrostatic drive system and multi functional joystick provide high levels of performance and maneuverability
Comfortable Operation: The cabin is ergonomically designed for increased operator comfort and visibility. The advanced monitoring system tracks machine operating conditions and keeps the operator informed of all vital machines functions
Reliable: The proven hydrostat design along with world class pump and motors provide a highly reliable tractor. The undercarriage components are designed for longer life versus the leading competitor
Serviceability: The SEM tractors are designed for easy access to reduce overall maintenance time. The machines electronic control module allows for quick troubleshooting

Performance parameters:

Model	SEM822D
Type	220HP Standard Hydraulic Crawler Type
Engine model	WD10G178E25
Rated power(kw/rpm)	175/1800
Operating weight	26,520kg
Ripper Weight	2,390kg
Track Shoe Width	560mm
Track Shoes Number (Each Side)	40
Track Rollers Number (Each Side)	7
Carrier Roller Number (Each Side)	2
Transmission Type	Dual-path, closed loop electronically controlled hydrostatic drive system
Travel Speeds - Forward and Reverse	Infinitely variable speeds 0-10 km/h
Steering and Brake	hydrostatic steering; wet,multi-disc brake
